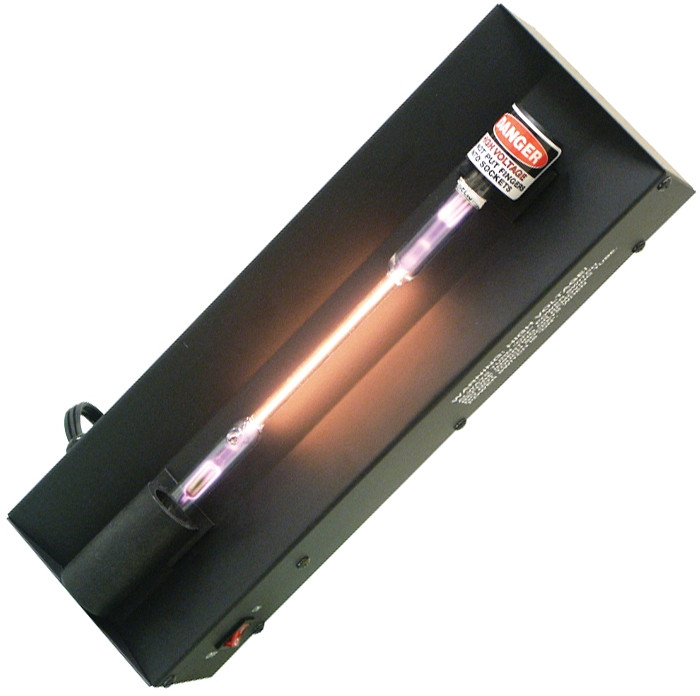

Elenco Spectrum Tube Power Supply

Safely Operate 10" / 26cm Spectrum Tubes for Classroom & Laboratory Demonstrations

The Elenco STPS-1 Spectrum Tube Power Supply is designed to provide safe and reliable operation of standard 10-inch spectrum tubes used in physics and physical science demonstrations.

Spectrum tubes allow students to observe the characteristic emission spectra of different gases. When connected to the STPS-1, the spectrum tubes will produce a visible glow that can be viewed directly or examined using a spectroscope or diffraction grating.

The STPS-1 features specially designed tube sockets and an enclosed design intended for educational laboratory use. Its regulated operating characteristics are designed to provide reliable operation while helping prolong the life of spectrum tubes.

Ideal for
High school physics classrooms
College and university physics laboratories
Physical science demonstrations
Spectroscopy experiments
Gas emission spectrum demonstrations
STEM education and science labs

Key Features
Designed for standard 10-inch / 26cm spectrum tubes
Provides safe and reliable spectrum tube operation
Specially designed sockets help protect users from accidental contact with electrical connections
Operates from standard 120 VAC, 60 Hz power
Manufactured by Elenco
Spectrum tubes sold separately

Specifications
Model STPS-1
Input Voltage 120 VAC
Input Frequency 60 Hz
Output Voltage 5,000 V without spectrum tube
Output with Tube 1,000 V @ 10 mA
Recommended Tube Size 10" spectrum tubes
Operating Temperature 10°C to 50°C
Storage Temperature –20°C to 60°C
Dimensions 15.75" H × 7.85" W × 5.75" D
Weight 7 lb 12.8 oz

How Spectrum Tubes Work

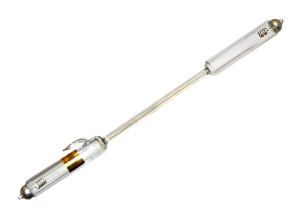

A spectrum tube contains a low-pressure gas that emits characteristic wavelengths of light when an electrical discharge passes through it. Different gases produce different emission spectra.

Students can use a spectroscope or diffraction grating to separate the emitted light into its individual wavelengths and observe the distinctive spectral lines of gases such as hydrogen, helium, neon, and other elements.

This makes spectrum tubes an excellent demonstration of the relationship between atomic structure, electron energy levels, and emitted light.

Important

Spectrum tube is not included. Spectrum tubes are available separately and are required for operation.

For educational laboratory use. Follow appropriate electrical safety procedures and the manufacturer's operating instructions when using high-voltage equipment.

Brand: Elenco
Model: STPS-1
