Millikan Oil Drop Apparatus Experiment Kit with USB Camera and Timer


(No reviews yet) Write a Review
Was: $799.95
Now: $659.95
Usually Ships in 2 to 3 Business Days

Product Overview

This complete Millikan oil drop experiment kit provides the convenience of a custom USB video recorder /camera to provide ultimate versatility and convenience to instructors. You can repeat an experiment performed by Robert Millikan in 1909 to determine the size of the charge on an electron. Millikan received the Nobel Prize for his work.

For more information on the Millikan oil drop experiment, please CLICK HERE

Kit Component List

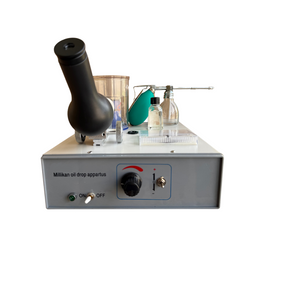

Millikan Oil Drop Apparatus
USB 2.0 Video Recorder / Camera (Hardware/Software is Windows Compatible) *Tested on XP, Windows 7, Windows 8.1 & Windows 10.
Digital Timer
Double throat pipe atomizer
2 Drams of oil
Complete instruction manual containing complete setup and sample experiment guide

Need a manual? Click this Product Instructions link for a product guide.

Leveling legs with level sight glass. Variable plate voltage 0-500V. Polarity reversing switch. Illuminated 30x objective w/ division scale. Double Throat pipe atomizer. 30ml of oil.

Voltage Input: 110V AC / 60Hz. Power Cord: 3 Prong grounded USA plug. Output Power: 5W. Operating Voltage between upper and lower polar plates: 0-500V. Distance between upper and lower polar plates: 5 +/- 0.2mm. Total magnification of measuring microscope: 30x. Linear field of vision: @3mm. Total division of scale: 2mm. Resolution of objective lens: 100 lines/mm. Overall Dimensions: 320mm X 220mm X 190mm. Weight: 9 lbs. / 4Kg.

Overseas customer? We now offer this device with 220V AC European Voltage. Use the drop down above to select the appropriate mains voltage for your country.
